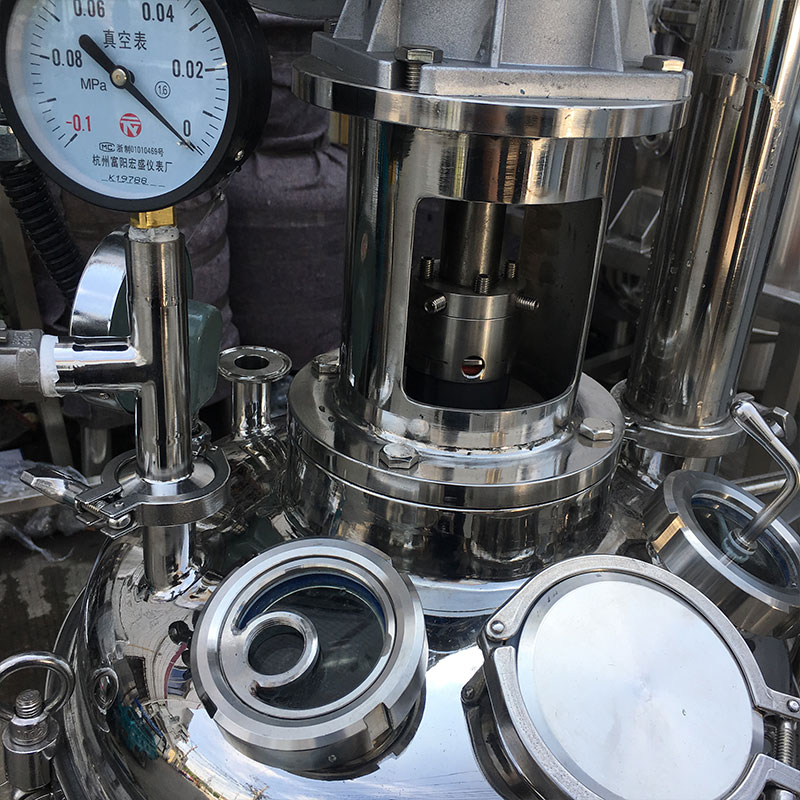

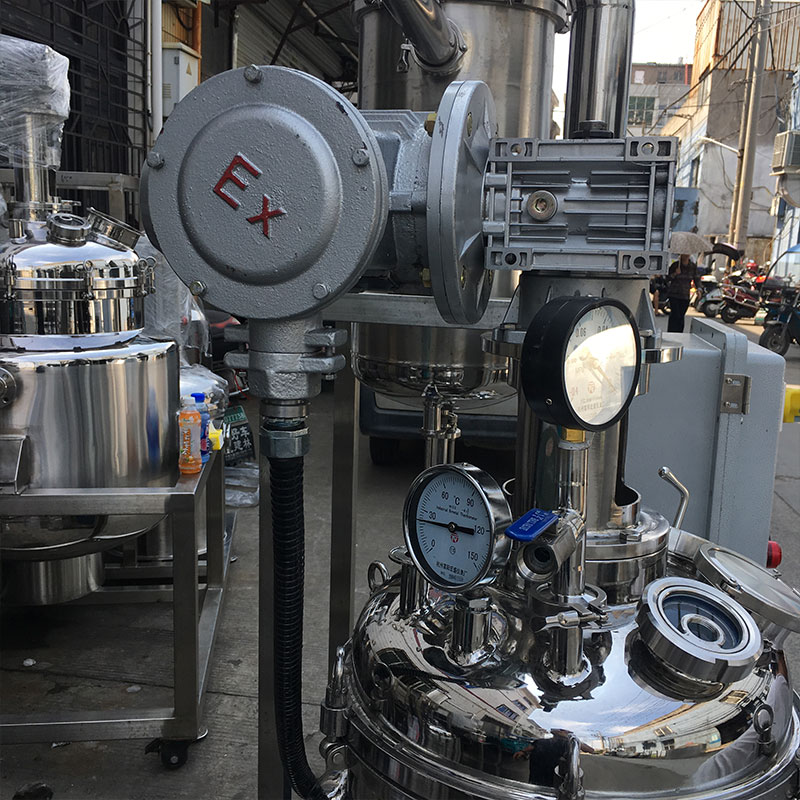

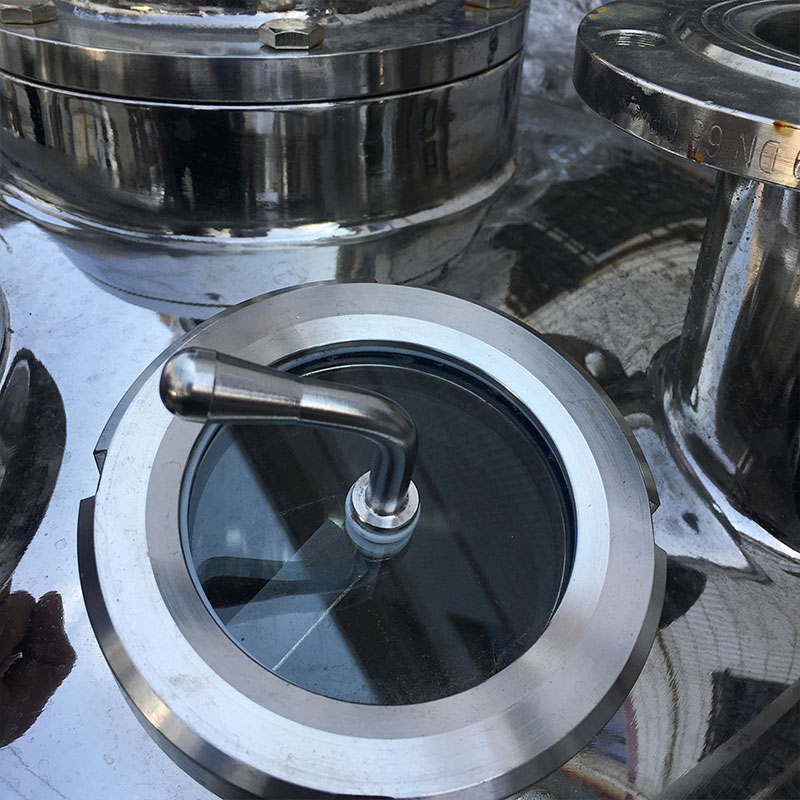

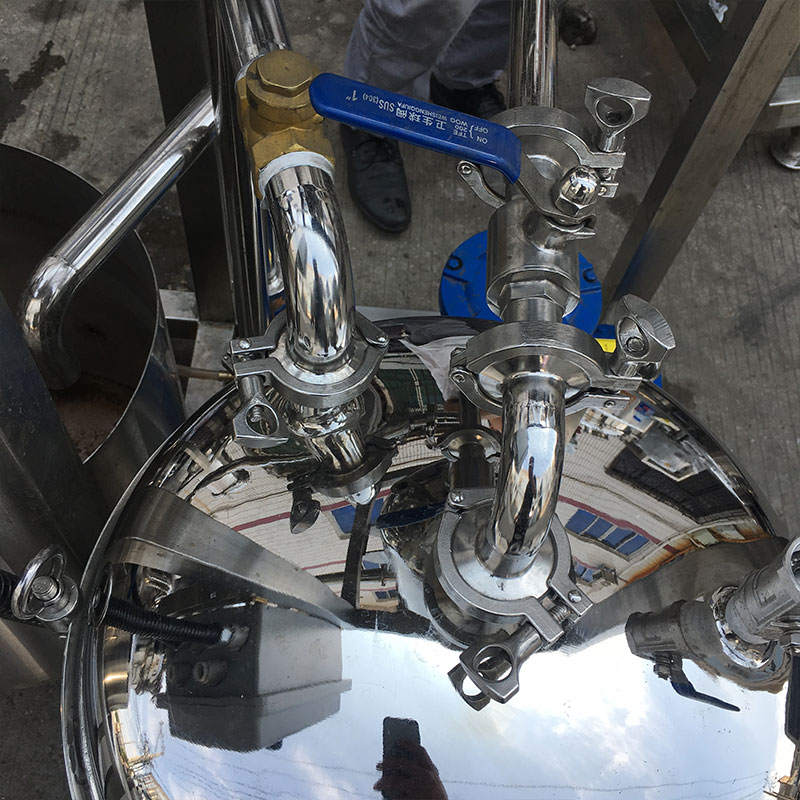

Decarb reactor

Description of the Decarb Reactor It is mainly used for the process of crystallization, combination, reaction, separation, concentration, etc. It is an ideal equipment for chemistry, finechemical,biopharmaceuticals, and the synthesis, test and production of new materials. The reactor can be a system with circulating water vacuum pump, diaphragm vacuum pump, chiller /low temperature circulator, heater and heating and cooling circulating device.

Inquire Now

Introduction
Specifications

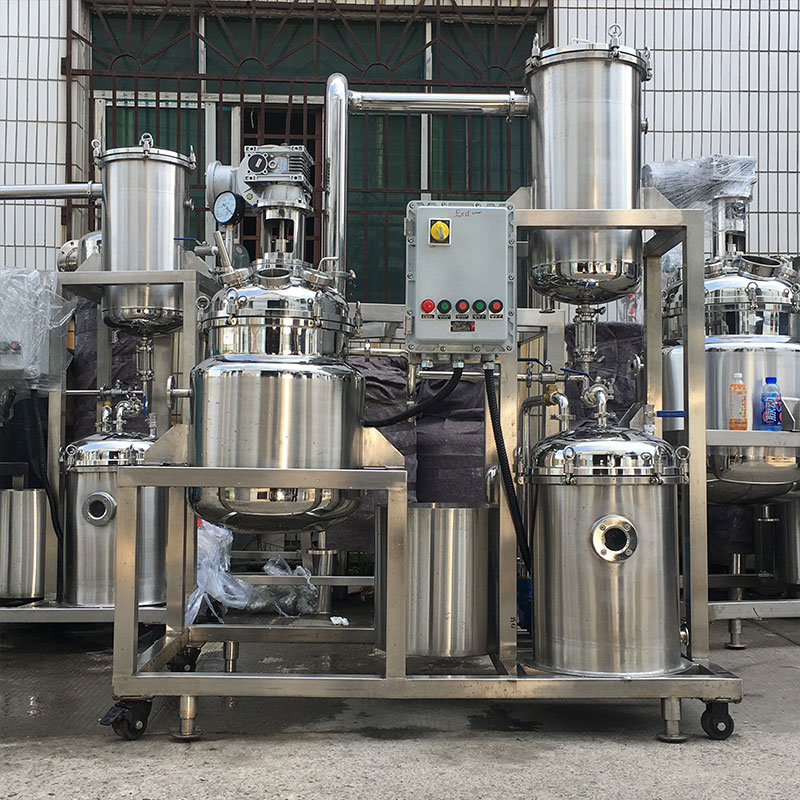

Description of the Decarb Reactor

It is mainly used for the process of crystallization, combination, reaction, separation, concentration, etc. It is an ideal equipment for chemistry, finechemical,biopharmaceuticals, and the synthesis, test and production of new materials.

The reactor can be a system with circulating water vacuum pump, diaphragm vacuum pump, chiller /low temperature circulator, heater and heating and cooling circulating device.

Technical Parameters

Model	DR-50	DR-100	DR-200
Evaporation Tank:
Effective Volume	50L	100L	200L
Mixing motor power	0.55kw	0.75kw	1.1kw
Heating steam pressure	0.15Mpa	0.15Mpa	0.15Mpa
Rotation speed	0-80r/min(Frequency), paddle type mixer		36r/min, anchor type mixer
Insulation Materials	Rock wool
Thickness	Inner side thickness: 4mm, Jacket thickness: 3mm, Outside thickness: 2mm
Structure	Up and down oval head, cylinder use flange connection, with the heating jacket, and Insulation layer.
Material	SS304
Recovery Tank:
Effective Volume	50L	50L	100L
Inner side thickness	3mm, inner surface use mirror polishing, outside matte.
Structure	Up and down oval head, cylinder use flange connection.
Condenser
Heat exchange area	1.5㎡	2㎡	2.5㎡
Material	SS304	SS304	SS304
Outside	Outside matte	Outside matte	Outside matte
Equipment Stand: Use 50*50 square tube, to support whole set of the equipment. SS304 material.
