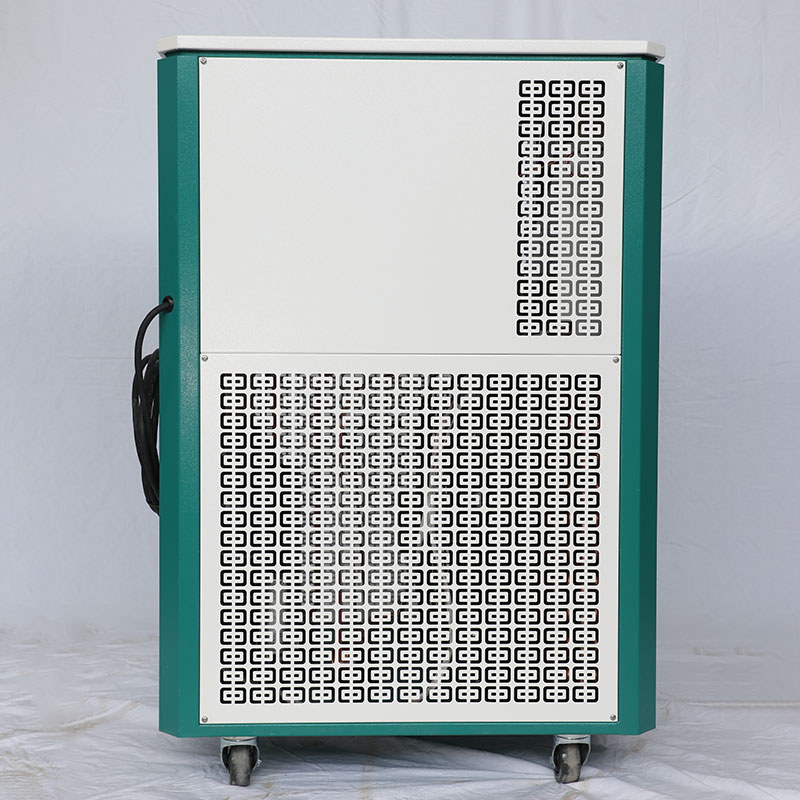

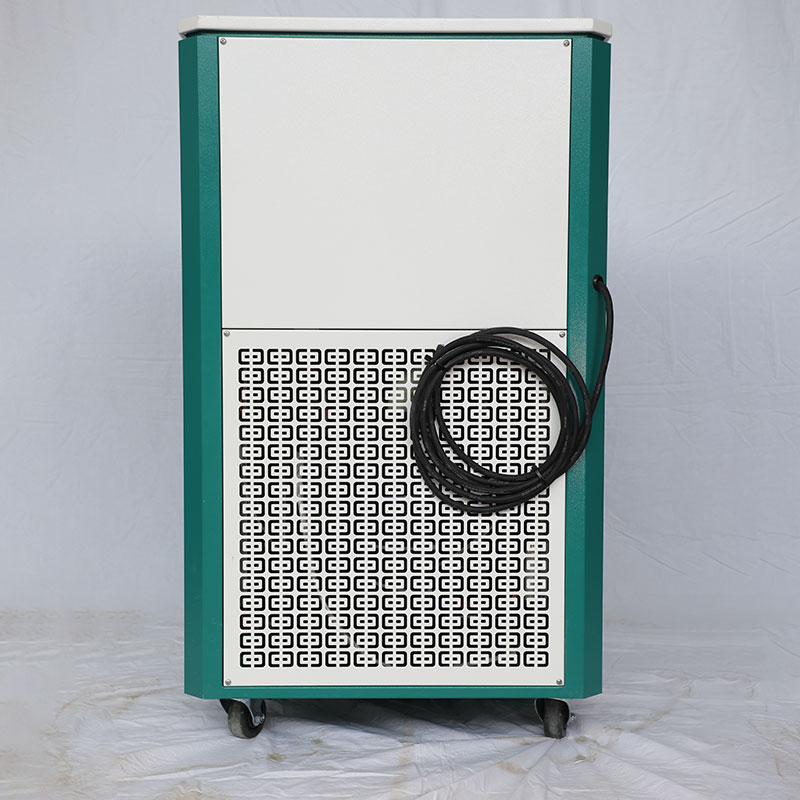

DLSB-50/40 low-temperature coolant circulation pump

Industrial low temperature coolant circulation pump(chiller) can be matched with a variety of instruments (rotary evaporator, chemical reactors, pharmaceutical reactor, stainless steel storage tank, centrifuge, falling film evaporator, wiped film system, etc.); cooling capacity is big , cooling speed is high, greatly improve work efficiency; it greatly meet the actual needs of different users; this machine can be based on user requirements for all models with cooling capacity at low temperature, low temperature and the container between the amount of a reasonable match.

Inquire Now

Introduction
Specifications

Description

Features

1. Adopt a closed circulation system
2. Digital display of temperature, temperature accuracy is controlled at =0.1C
3. Adopt brand compressors (Danfoss, Bitzer, etc.), with low noise and stable operation.

Technical Parameters

Model	DLSB-30/40	DLSB-50/40	DLSB-100/40	DLSB-200/40	DLSB-300/40
Volume	10L	17L	35L	100L	100L
Refrigerant	R404A	R404A	R404A	R404A	R404A, F23
Coolant temperature	-40°C	-40°C	-40°C	-40°C	-40°C
Cooling capacity	7300-900W	12050-2012W	15750-600W	22500-4019W	24375-2100W
Rated power	3650w	4900w	5000w	7500w	9750w

Model	DLSB-50/80	DLSB-100/80	DLSB-200/80	DLSB-300/80	DLSB-500/80
Volume	17L	35L	100L	100L	200L
Input Current	26A	28A	30A	35A	48A
Refrigerant	R404/R23A	R404/R23A	R404/R23A	R404/R23A	R404/R23A
Coolant temperature	-80°C	-80°C	-80°C	-80°C	-80°C
Cooling capacity	12050-1350W	15750~550W	26250-4019W	24375~4500W	98000-9000W
Rated power	10500w	13600w	15900w	21000w	22500w

Model	DLSB-50/120	DLSB-200/120	DLSB-300/120	DLSB-500/120	DLSB-1000/120
Volume	17L	100L	100L	300L	300L
Input Current	30A	45A	60A	110A	150A
Refrigerant	R404/R23A /R14	R404/F23 /R14	R404/F23 /R14	R404/F23 /R14	R404/F23 /R14
Coolant temperature	-120°C	-120°C	-120°C	-120°C	-120°C
Cooling capacity	14250-1200W	25000-1000W	34125-4500W	72700-1100W	150000-5000W
Rated power	13500w	22500w	29250w	35000w	58000w
